Friday, June 11, 2010

Navy Adapts Heritage Sheds


This is a great little story and I am proud to share it with greater Auckland. This is a view of North Head Devonport, from Mt Victoria. You can see the old military base buildings on North Head - now occupied by DOC. Dept of Conservation.

Looking closer, down by the water, you can see the Navy land at Torpedo Bay. That's the refurbished Torpedo Wharf.

And even closer you can see two shed like buildings on the waterfront, overlooked by residential buildings - many of them heritage villas.

This is the larger of the two sheds, and will soon open as the Navy Museum. I understand the opening of the museum is sometime in October this year. You can see Mt Victoria in the background.

The shed has been reclad in corrugated iron, but retains many of its features. The original shed was built over a hundred years ago, and was an important part of the harbour's defences against seaborn invasion.

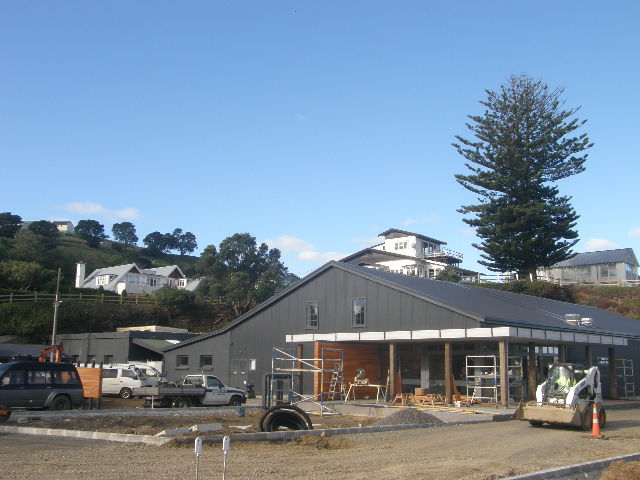

This view of the shed frontage shows a modern style entry area has been designed for public entry and also to house a sea view cafe.

The windows are original - old drawings of the original shed showed these windows in this position. A heritage architect was retained by the Navy to get the detail as right as they could for their tight budget of less than $1.5 million for the whole job.

Inside the entry is the white reception and interpretation area. The original ironwork supporting the roof is a feature.


The main part of the museum is in sharp dark contrast. Again the original roof structure is evident. When first built this area was where the mines were assembled before being put in position across the harbour entrance.

The wooden structures are being added later - within the shed envelope - to house the Navy's collection of exhibits and museum displays.


Again, this dark space is lined with the original doors that led to the areas where the mines and explosives were stored.

There are 3 mine and explosive storage areas. These have the highest historic values I understand, and their restoration will be more detailed and painstaking. You can see on the floor the original rail tracks used for the trollies that carried the mines and their makings into the assembly area.

This picture shows the roof, which is curved, around 2 feet thick of concrete, which was poured into shape and supported by rail-lines structures that you can see in the ceiling.

The doorways, windows and walls are around 2 feet thick concrete also. Designed to withstand a significant explosion.

The explosives storage areas fit against the cliff with its coastal pohutakawa. Creating interesting spaces for education and coffee away from the wind.


The whole area has many interesting places to sit and explore. Whereever possible the design has incorporated the old and original woodwork and corrugated iron work and concrete.

Somehow it all blends into the surrounding Devonport landscape.

And here's the other shed, which sits alongside Torpedo Wharf.

It's an old structure too, needed some serious love and attention.

It was the Boat Shed at Torpedo Bay.


And inside it's a magic place.

Well done Navy.

You've shown Auckland what can be done within a tight budget, working with the Historic Places Trust, to adaptively reuse your old sheds.

Fantastic.
